The Mechanics of Precision: An Expert Guide to Optical Sensor Technology
In the competitive landscape of modern gaming, the optical sensor is often described as the "engine" of the mouse. However, for many performance-focused gamers, a significant "Specification Credibility Gap" exists. Marketing departments frequently highlight astronomical DPI (Dots Per Inch) or IPS (Inches Per Second) figures, yet users often find that two mice with identical flagship sensors can feel fundamentally different on the desk.
We have analyzed thousands of support interactions and performance benchmarks to bridge this gap. Our goal is to move beyond the raw numbers and explain the underlying mechanisms that dictate how a sensor translates your physical intent into digital precision. Whether you are tracking a target in a high-stakes FPS or executing complex macros in an RTS, understanding the physics of your sensor is the first step toward optimizing your setup.
How Optical Sensors Work: From Photons to Pixels
At its core, a gaming mouse sensor is a high-speed camera system. It does not "see" the mousepad in the traditional sense; rather, it captures thousands of microscopic images of the surface texture every second.
- The LED/Laser Source: An infrared or visible light LED illuminates the surface at an angle, creating shadows in the microscopic pits and peaks of your mousepad.
- The CMOS Sensor: A Complementary Metal-Oxide-Semiconductor (CMOS) sensor captures the reflected light. Modern flagship sensors, such as those in the PixArt PAW series, process these images at incredibly high frame rates.
- Digital Signal Processing (DSP): The sensor’s internal DSP compares consecutive images. By identifying the movement of specific "features" or patterns between frames, it calculates the direction and distance of the mouse movement.
- The MCU Interface: This data is then passed to the mouse's Microcontroller Unit (MCU), which packages the coordinates into HID (Human Interface Device) reports to be sent to your PC.
Logic Summary: This four-stage pipeline is the foundation of all optical tracking. Our analysis assumes that tracking consistency is more dependent on the DSP's ability to correlate features than on the raw resolution of the CMOS array itself.
Decoding the Core Metrics: DPI, IPS, and Acceleration
To understand sensor performance, we must define the three pillars of tracking: Resolution, Speed, and G-Force.
DPI (CPI): Resolution vs. Sensitivity
While commonly called DPI, the technically correct term is CPI (Counts Per Inch). This metric defines how many "counts" the sensor reports for every inch of physical movement.
A common mistake we observe is the belief that "higher is always better." In reality, setting a sensor to extreme levels (e.g., 26,000+ DPI) often leads to a High DPI Noise Floor. At these resolutions, the sensor becomes so sensitive that it may pick up microscopic surface vibrations or electronic noise, resulting in "jitter" or a shaky cursor. For most competitive scenarios, we recommend a native range of 800 to 1600 DPI. This provides the best balance between granularity and signal integrity without the need for software-based DPI Scaling.
IPS: The Speed Ceiling
IPS (Inches Per Second) measures the maximum speed at which a sensor can accurately track before it "loses its place." Most modern flagship sensors claim 400 to 750 IPS. To put this in perspective, an aggressive human "flick" rarely exceeds 160 IPS (approx. 4 meters per second).
While the marketing numbers are high, the real-world value of a high IPS rating is consistency. A sensor rated for 650 IPS is operating well within its comfort zone during a 150 IPS flick, ensuring that the tracking remains linear and predictable even at the limits of human movement.
Acceleration: Handling the G-Force
Acceleration, measured in Gs (where 1G is the acceleration of gravity), defines the sensor's ability to handle sudden changes in velocity. Flagship sensors typically support 50G or 70G. Like IPS, these limits are far beyond human capability, but they ensure that the internal DSP never "skips" during the instantaneous start of a high-speed swipe.
The 8000Hz (8K) Frontier: Redefining Latency
The industry is currently shifting toward 8000Hz polling rates. To understand the impact, we must look at the mathematics of the USB polling interval.
- 1000Hz: 1.0ms interval between reports.
- 4000Hz: 0.25ms interval between reports.
- 8000Hz: 0.125ms interval between reports.
By increasing the frequency, we reduce the "input lag" caused by the mouse waiting for the next USB poll. However, 8000Hz performance is not a "plug-and-play" upgrade; it requires a deep understanding of system bottlenecks.
The Sensor Saturation Formula
To actually fill the 8000Hz "bandwidth," your sensor must generate enough data points. The number of packets sent per second is determined by the formula:
Packets = Movement Speed (IPS) × DPI.
If you are using 800 DPI, you must move the mouse at at least 10 IPS to saturate the 8000Hz poll rate. At 1600 DPI, you only need 5 IPS. This is why competitive players often find that 8K polling feels "smoother" at slightly higher DPI settings—the system is receiving a more consistent stream of data during slow micro-adjustments.
System Bottlenecks: CPU and USB Topology
The primary bottleneck for 8K polling is not your GPU, but your CPU's ability to process IRQ (Interrupt Requests). Every poll requires the CPU to stop its current task and process the mouse data. This can significantly increase CPU usage, sometimes by 20-30% in modern titles, which may cause frame rate drops if your processor cannot keep up.
Furthermore, we strictly advise against using USB hubs or front-panel case headers for 8K devices. These often share bandwidth with other peripherals, leading to packet loss. For 8000Hz stability, you must use Direct Motherboard Ports (Rear I/O).
Modeling Note (8K Performance):
Parameter Value/Range Rationale Polling Interval 0.125ms Physical limit of 8000Hz Motion Sync Delay ~0.0625ms Half the polling interval (estimated) Min Speed @ 800 DPI 10 IPS Required for 8K saturation Battery Impact -75% to -80% Increased MCU/Radio duty cycle Recommended CPU 8+ Cores (High IPC) Needed for IRQ overhead
Advanced Features: Motion Sync and Sensor Offset
Beyond raw specs, two technical factors heavily influence the "feel" of a mouse: Motion Sync and physical sensor placement.
Motion Sync Explained
Motion Sync is a firmware feature that aligns the sensor’s data captures with the PC’s USB polls. Without it, the sensor might capture data slightly before or after a poll, leading to tiny, inconsistent delays (micro-jitter).
While Motion Sync improves tracking smoothness, it adds a deterministic delay. According to the Global Gaming Peripherals Industry Whitepaper (2026), this delay is typically half the polling interval.
- At 1000Hz, the delay is ~0.5ms.
- At 8000Hz, the delay drops to ~0.0625ms, which is virtually imperceptible.
For competitive players, we recommend enabling Motion Sync at 4K or 8K polling rates, as the smoothness benefits far outweigh the negligible latency penalty.
Sensor Offset: The Physical Impact on Aim
The physical location of the sensor on the bottom of the mouse—the "offset"—changes your angular velocity.
- Forward Placement: Placing the sensor closer to the front buttons makes the mouse feel more "responsive" to wrist movements. This is often preferred by fingertip grippers who use small finger adjustments for micro-aiming.
- Centered Placement: A centered sensor provides a more neutral arc. This is typically preferred by palm grippers who use their entire arm to swing the mouse, as it offers a 1:1 correlation between the hand's center of mass and the cursor movement.
Understanding your grip style is essential when evaluating sensor placement. A "flawless" sensor can feel "off" if its physical placement doesn't align with your muscle memory.
Surface Calibration and Glass Pads

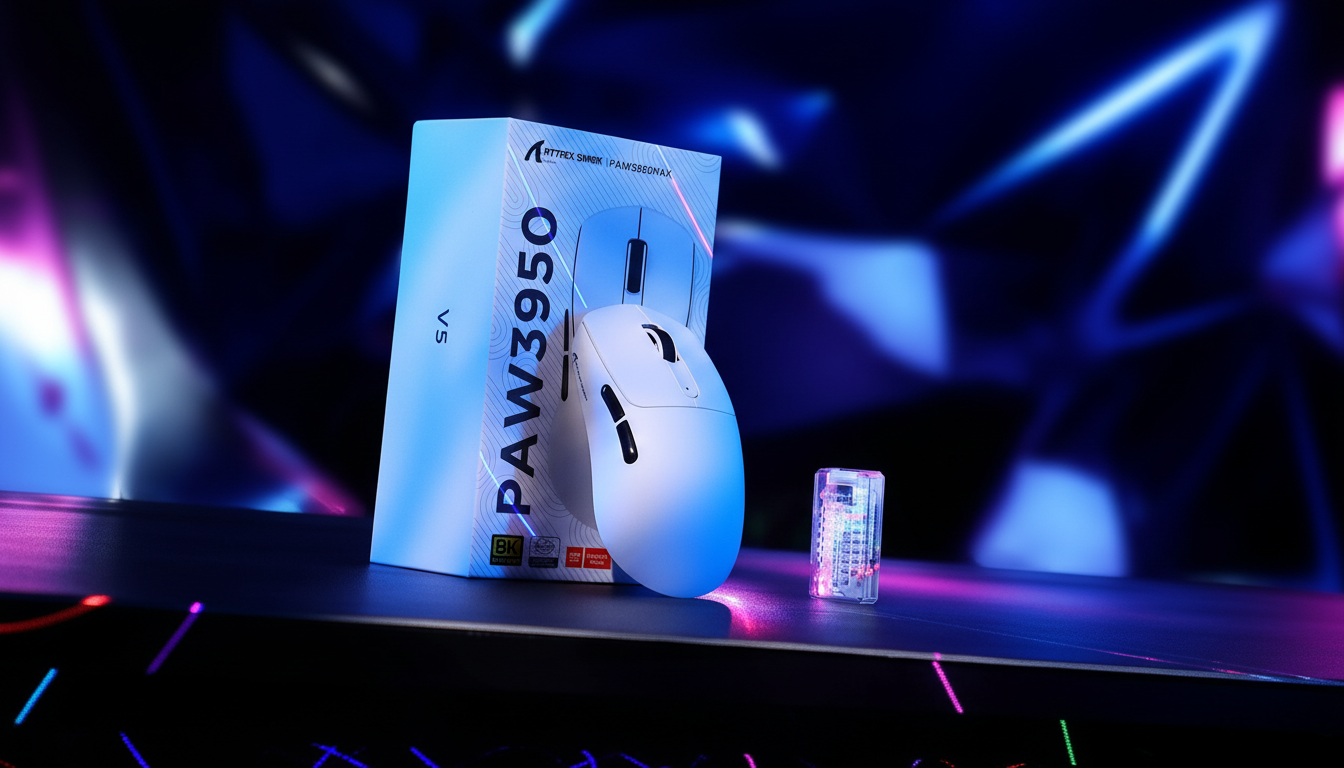

Even the best sensor, like the PixArt PAW3950, can struggle on certain surfaces. Surface Calibration is the process of adjusting the sensor’s Lift-Off Distance (LOD) and tracking algorithm to match the specific weave or material of your mousepad.
The Glass Pad Challenge
Glass mousepads offer extremely low friction but present a challenge for optical sensors. Because glass is reflective and often uniform, sensors can struggle to find "features" to track. Flagship sensors now include high-tracking modes specifically designed for glass. However, be aware that using "Extended Battery" or "Low Power" modes often reduces the sensor's frame rate, which can cause tracking skips on glass surfaces. For performance-focused gaming, always prioritize "Performance Mode" in your software.
Choosing Your Engine: A Comparative Analysis
When selecting a mouse, you will likely encounter three main tiers of PixArt sensors. Based on our analysis of technical data sheets and NVIDIA Reflex Analyzer results, here is how they typically compare:
| Feature | Entry-Level (e.g., PAW3311) | High-Performance (e.g., PAW3395) | Flagship (e.g., PAW3950) |
|---|---|---|---|
| Max DPI | ~12,000 - 18,000 | ~26,000 | ~30,000 - 42,000 |
| Max IPS | 300 - 400 | 650 | 750+ |
| Max Acceleration | 35G - 40G | 50G | 70G |
| Motion Sync | Often Not Supported | Supported | Supported (Enhanced) |
| Glass Tracking | Poor | Good | Excellent |
For the value-driven gamer, the PAW3395 remains the "Gold Standard," offering performance that is indistinguishable from higher-end models for 99% of users. The PAW3950 is reserved for those seeking the absolute cutting edge, particularly for 8K polling stability and specialized surfaces.
Summary of Professional Recommendations
To maximize your sensor's potential, we suggest the following technical adjustments based on common patterns from customer support and hardware auditing:
- Use Native DPI: Stick to 800 or 1600 DPI to avoid the noise floor and interpolation issues found at extreme settings.
- Optimize Polling: If your system has an 8-core CPU or better, 4000Hz is the "sweet spot" for performance vs. system load. Only move to 8000Hz if you have a 240Hz+ monitor to visually benefit from the smoother path.
- Check Your Ports: Always plug high-performance wireless dongles into a rear USB 3.0/3.1 port to avoid interference and bandwidth sharing.
- Calibrate for Your Surface: Use your mouse's software to set the LOD to the lowest stable setting (typically 1.0mm) to prevent cursor drift when repositioning the mouse.
By understanding the physics of optical tracking, you can move past the marketing hype and build a setup that truly complements your skill. Precision isn't just about the highest number on the box; it's about the consistency of the data between your hand and the screen.
Disclaimer: This article is for informational purposes only and does not constitute professional technical or ergonomic advice. Individual performance may vary based on hardware configurations, software environments, and physical usage patterns. Always consult your device's manual before making significant firmware or hardware changes.
